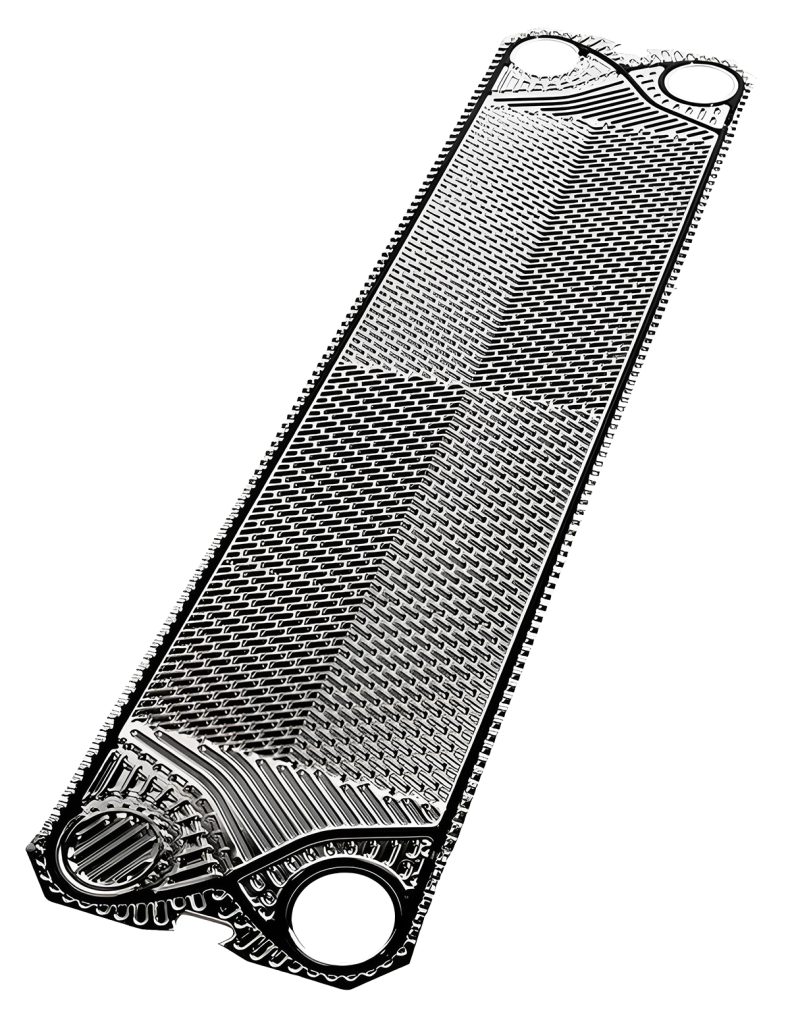

Plate Heat Exchanger Plates

The most important and expensive part of a detachable plate heat exchanger is the
heat exchanger plates, which are made from metal or metal alloys depending on the
application. Each manufacturer’s plates differ in overall dimensions, vertical and
horizontal center spacing, plate thickness, gasket groove configuration, and geometry. Efficient Thermal offers a wide range of heat exchanger plates from world-renowned heat exchange equipment manufacturers.

Specifications

Temperature Range: -40°C to +260°C
Channel Width: 5mm to 16mm
Plate Thickness: 0.4mm to 0.8mm
Plate Materials: AISI304, AISI316/316L, AI-SI904L, 254SMO, titanium, Hastelloy,
nickel alloys, etc.
